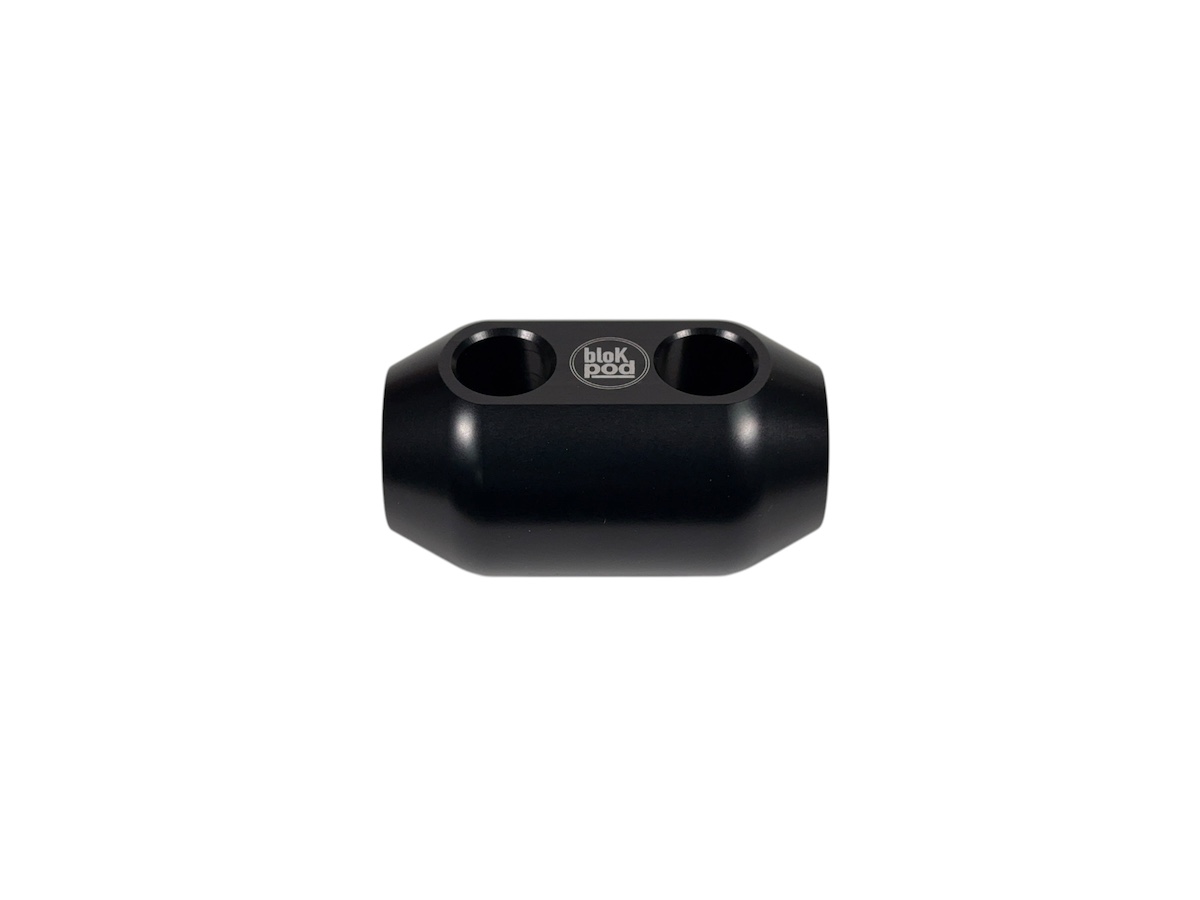

Bike Fork Mount Low Profile Black – Surface Mount – *Body Only

£26.00 Inc Vat (UK) ex Vat (EU)

Our Low Profile Bike Fork Mount has been designed to be specifically used when you need a little more clearance, ie in a motorhome garage space !!  The bed is usually a fixed height giving you a space with a fixed height !  We have shaved 40mm off the height of our Original Fork Mount giving this Low Profile an incredible Low Height of 20mm from base to Axle Centre.  At this low height it might not fit your ride….so you need to check what you have for compatibility, have you got a Calliper hanger ? have you got suspension adjustment on the bottom of your fork etc…

The body is machined from a single billet of 6026 Aluminium and anodised with an exterior grade finish to a thickness of 25 Microns (AA25) and is compatible with all our Fork Mount Inserts.

Note* Fixings not supplied.

Supplied:

  • 1 x Black Low Profile Fork Mount Body



36 in stock

SKU: FM-LP-BO-BL Category: Tag:

Description

Low Profile Bike Fork Mounts have been designed to be used when a little more clearance is required, ie in a motorhome garage space !!, the bed is usually a fixed height giving you a space with a fixed height !

We have shaved 40mm off the height of our Original giving this Low Profile an incredible Low Height of 20mm from base to Axle Centre.  At this low height it might not fit your ride….so you need to check what you have for compatibility, have you got a Calliper hanger ? have you got suspension adjustment on the bottom of your fork etc….

This next bit will sound a bit mad, you might need to add a bit of height for clearance on the bike fork, adding a rail will increase the height by 16mm and for additional adjustment you can add an Off-Set plate, adding a further 8mm to the height.  So adding a Low Profile Fork Mount + Rail + Off-Set Plate you would have a total height from base to axle centre of 44mm which should clear most Bike Forks on the market, this is still 40mm lower when compared with our Original.

Machined from a single billet of 6026 Aluminium and anodised with an exterior grade finish to a thickness of 25 Microns (AA25) and is compatible with all our Fork Mount Inserts.

We have access holes through the top of the Fork Mount to 2 x Recessed holes ready to take our Nord Loc anti vibration washers and A2 Stainless steel button head screws.

As this is a body only you will need to add the correct fork mount inserts which are available separately, unless you already have them.

Note* Fixings not supplied.

Supplied:

  • 1 x Black Low Profile Fork Mount Body

Additional information

Weight .240 kg
Dimensions 14 × 11 × 4 cm
Brand

Kampa
