NOTE ***We hold some stock on the shelves and usually we have more on the go, please contact for stock level confirmation. You will also require a vehicle fixing kit to secure the tray to the vehicle, this can be a simple set of angle brackets so you can screw directly to the floor or one of our vehicle specific fixing kits. If you don’t see what your looking for or would like something made custom then please contact us for advise on what we can offer.***

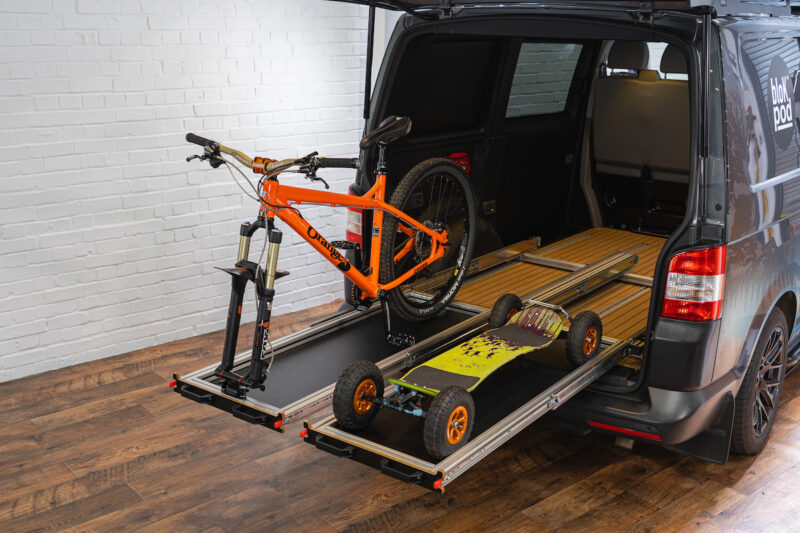

Our Twin sliding tray option allows for a bit more organisation as well as an option to later add beds if needed. It also works nicely with our drop in kitchen, storage boxes or bikes.
The size tray you require depends on a few variables, how your going to use it, what space in the vehicle you have and if carrying bikes how many, what frame sizes you have and most importantly will the bike fit in the back of your vehicle with the front wheel off and the rear on. The correct positioning of the bikes on the tray is also key to allow the handle bars clearance of any obstructions, but you already know that 😉
The sliding trays we produce are constructed from an anodised aluminium extrusion which have slots for drop in sliding T nuts (M4, M5, M6 and M8) so adding mounting points is simple. The drawer runners we use are a heavy duty lockable runner that can take weights of up to 230kg (depending on size). To extend the tray from its stored position all you need do is depress the two red locking levers and pull, when fully extended the tray will lock automatically, to release do the same in reverse.
The main base and facias of the tray are constructed using 12mm Birch Ply that has been resin coated with a printed hex pattern, this stuff is waterproof, super strong and virtually impossible to scratch so will last for years. At the front, rear and both sides of the tray there is a aluminium profile rail to allow for connecting some of the accessories we make, after all what good is a tray if you can’t mount stuff to it. Add one of our Fork mounts suitable for extrusion fitting with the correct fork mount and axle inserts and you have everything you need to mount your first steed. There really easy to mount – The t-nuts (supplied with the Extrusion fitting Fork Mounts) just slip in from above so you don’t need to worry about taking the frame apart. Fork Mount/ Mounts just drop on, finger knobs located in the t-nuts and positioned/ re positioned before tightening.
If your mounting multiple bikes your probably going to need to add some offset mounting plates to the fork mounts, these give infinite positioning possibility’s which we guarantee are essential, after all there are so many different sizes of frame along with frame geometry. Its like a game of ‘Tetris’ once you’ve mastered it, its easy 😉
When you need the tray for something else undo the finger knobs and remove the Fork Mounts leaving the tray clear of any obstructions.
*Don’t worry if you have already purchased one of our surface mount Fork Mounts we’ve got you covered, just buy the separate fixing kit when adding the Tray to your basket 😉
We also supply seperately, adjustable eyelets and mounting hoops that can be attached to the trays front, back and side rails so you can add cargo nets, bungees and straps for securing loads.
If this size is not suitable then let us know what your preferred size is and we will send you a price 😉
*Some photos are representative of the sliding tray construction, the actual size of the tray is stated below.
Sliding Tray Sizes:
- External Frame Width 1205mm
- External Frame Depth (including handles) 1448mm
- External Frame Depth (excluding handles) 1408mm
- Sliding tray Extension 1372mm
- Internal Base Board Width (x2) 400mm x Depth 1300mm
- Internal Tray Width (x2) 480mm
- Internal Tray Depth (x2) 1380mm
- Base Tray Weight 70kg
- Maximum Weight Load 200kg Per Tray (evenly distributed)
What you get:
- 1 x Twin Sliding Tray Width 1205mm x Depth 1448mm including 2 x Sliding Trays 480mm x 1380mm (***Vehicle fixing kit not supplied and can be purchased separately***)
**This product is made to order, lead time 2 – 4 weeks**
