Description
*Designed to work with your Mercedes Factory Fitted Rails
Its a simple idea….. The vehicle has factory fitted rails so why not use them to mount your multiple steeds !! One twin slot rail 1200mm long with quick release fitting.
We supply a piece of 80mm wide x 16mm high x 1200mm long extrusion that has twin t-nut slots and 2 x end caps. Â There are 2 x 10mm wide x 100mm long machined slots at each end to give a bit of adjustment when fitting to the vehicles factory fitted rails.
To fit: Â Drop the supplied Round T-Nut with the flats facing the same way as the rails into the outer rail in the van and slide under the rail flats, do the same on the other rail, place the Twin slot rail so the Slots align with the T-Nut threads, next add the supplied penny washer and screw the supplied Knob assembly into the T-Nuts. Â Note make sure the T Nuts are located under the flat of the vehicle rail otherwise the T-Nut will spin.

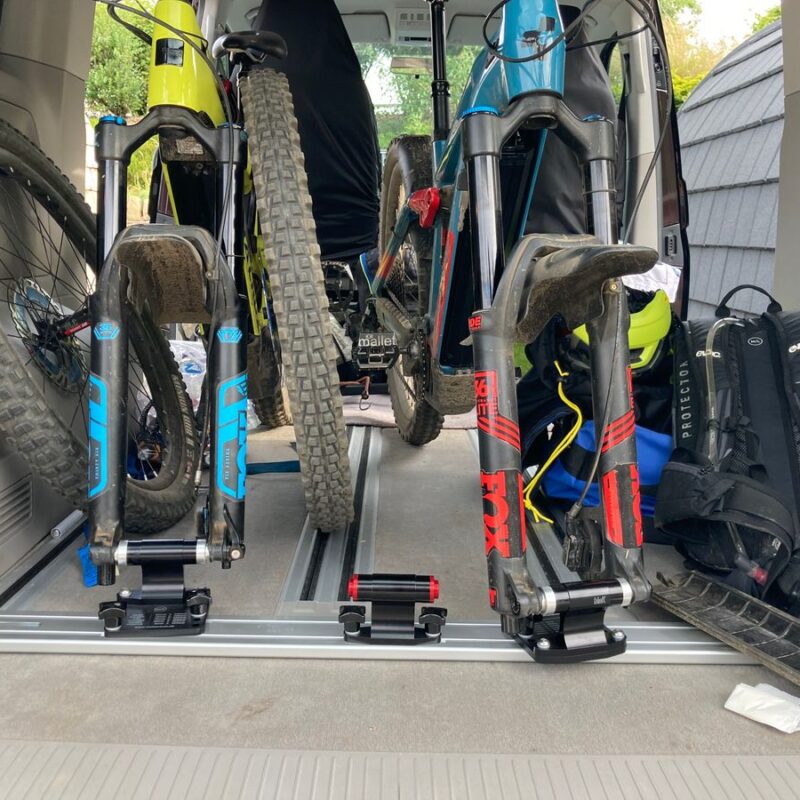

Fitting 1 – 2 bikes   Once fitted to your vehicle the t-nuts (supplied with the Extrusion fitting Fork Mounts) just slip in from above so you don’t need to worry about bashing the end caps off.  Your Fork Mount/ Mounts can then be dropped on, finger knobs located in the t-nuts and positioned straight or straddle both slots to angle the bars for closer nesting, then tighten.
Fitting 3 – 4 bikes Your going to need one of our off-set plates added to each of you fork mounts (these can also be added for 1-2 bikes 😉 These do exactly what it says on the tin, it allows your bikes to be off-set so you can nest them nice and close, There is no right or wrong way to fit them because it all depends on what size your ride is !
*Don’t worry if you have already purchased one of our surface mount Fork Mounts we’ve got you covered, just buy the separate fixing kit when adding the rail to your basket 😉
Specification:
1200mm Rail has a fitting pitch from centre to centre of fixing point of 1010mm – 1140mm, if this doesn’t work for you then get in touch and we will see what we can do to help 😉
What you get:
- 1 x 80mm wide x 16mm High x 1200mm Long Twin T-Slot Extrusion Rail with slots each end
- 2 x End Caps
- 2 x T-Nuts M8
- 2 x M8 Finger Knob Assembly
- 2 x M8 Penny Washers
