*Designed to work with VW Caddy Rear Cargo Hoop Mounting Holes.
Its a simple idea….. The vehicle has factory mounting points so why not use them to mount your multiple steads !! One single slot rail 990mm long with 2 x M6 fixings each end.
We supply a piece of 40mm wide x 16mm high x 990mm long extrusion that has a single t-nut slot and 2 x end caps. There are 2 x recessed slots machined at each end to allow for 2 x M6 fixings to be added to the vehicles factory fitted fixing holes, we also supply 2 x spacers to fit between the existing cargo hoop fixing holes and the underside of the rail so you don’t crush the rear threshold.

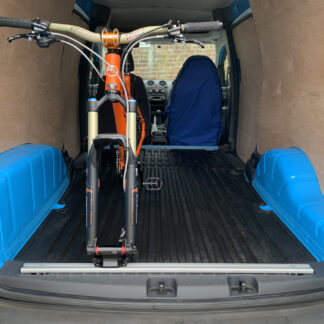

To fit remove 2 screws from each cargo hoop left and right, place supplied spacers on top of the cargo hoop, inline with the tapped hole, place the rail over the top and drop the supplied M6 fixings through and tighten, that’s it ready to add fork mounts.

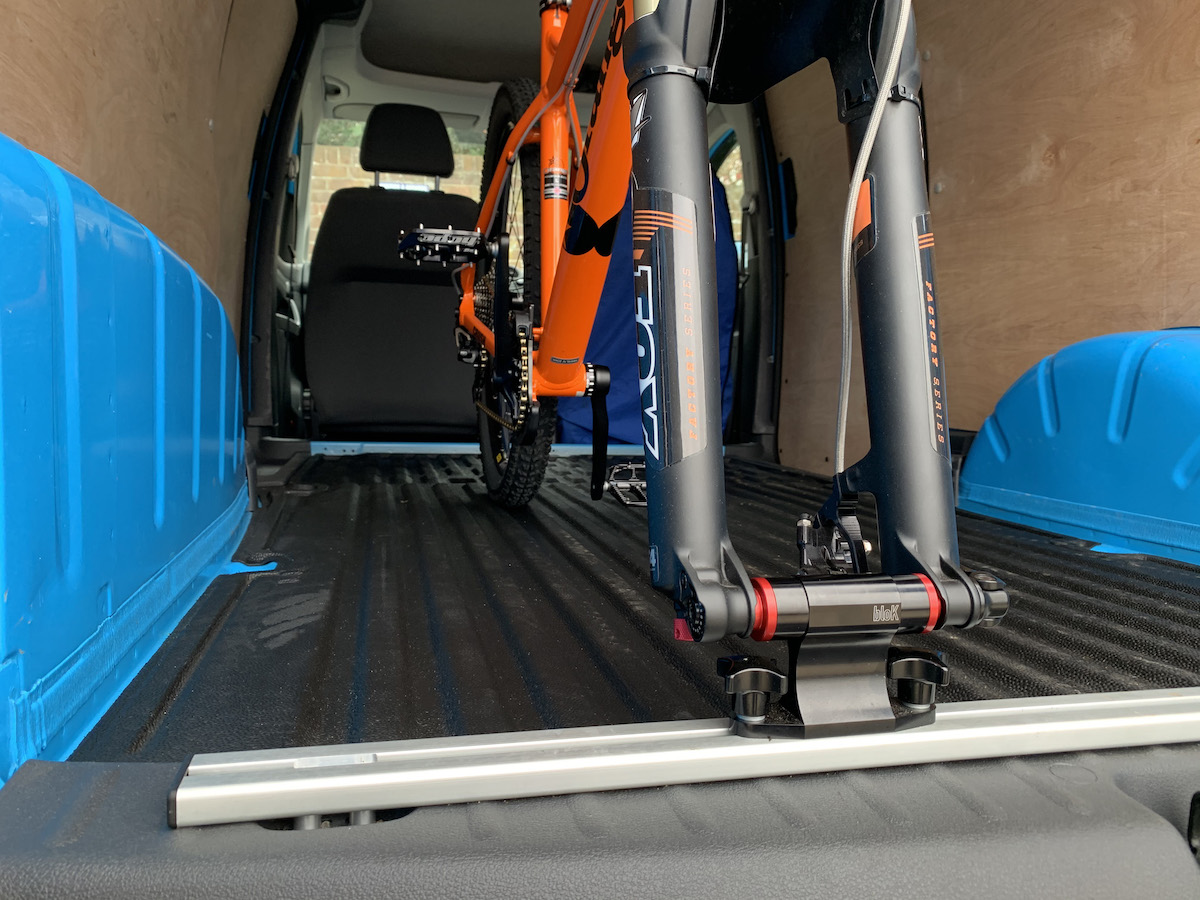

Fitting 1 bike Once fitted to your vehicle the t-nuts (supplied with the Extrusion fitting Fork Mounts) just slip in from above so you don’t need to worry about bashing the end caps off. Your Fork Mount/ Mounts can then be dropped on, finger knobs located in the t-nuts and positioned straight, then tighten.
Fitting 2 bikes Your going to need two of our off-set plates added to each of you fork mounts (these can also be added for 1-2 bikes 😉 These do exactly what it says on the tin, it allows your bikes to be off-set so you can nest them nice and close, There is no right or wrong way to fit them because it all depends on what size your ride is !
*Don’t worry if you have already purchased one of our surface mount Fork Mounts we’ve got you covered, just buy the separate fixing kit when adding the rail to your basket 😉

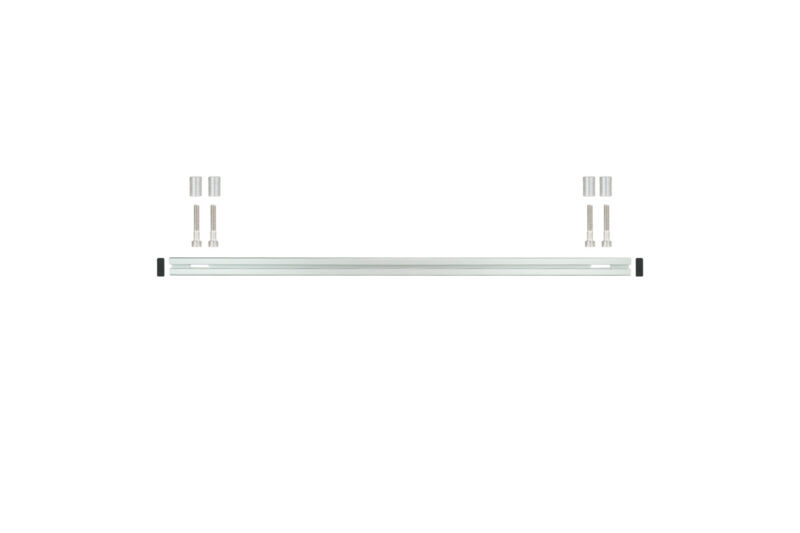

What you get:
- 1 x 40mm wide x 16mm High x 990mm Long Single T-Slot Extrusion Rail with slots each end
- 2 x End Caps
- 4 x Clamping Spacer
- 4 x M6 Stainless Cap Screws
