SWB/LWB Vehicle – Twin Sliding Tray + Removable Extending Single Bed (Driver Side)

£2,800.00 Inc Vat (UK) ex Vat (EU)

Note* This product is for collection only from Blok HQ, Delivery currently not available.  We also offer Free Installation when you collect, please contact for more info.

One Pod Multiple Configurations

The Modular (Mod Pod) is our most flexible Pod so far.

Supplied in 2 parts, 1 x twin sliding base tray and 1 x extendable single bed cartridge (Driver Side) plus height adjustable spacers, you configure depending on your adventure.

Twin Sliding Tray Sizes/ Weights:

  • External Frame Width 1205mm
  • External Frame Depth (including handles) 1448mm
  • External Frame Depth (excluding handles) 1408mm
  • Sliding tray Extension 1372mm
  • Internal Base Board Width (x2) 400mm x Depth 1300mm
  • Internal Tray Width (x2) 480mm
  • Internal Tray Depth (x2) 1380mm
  • Base Tray Weight 70kg
  • Maximum Weight Load 200kg Per Tray (evenly distributed)

Bed Cartridge Sizes/ Weights :

  • External Frame Width 600mm
  • External Frame Depth (including handles) 1070mm
  • External Frame Depth (excluding handles) 1030mm
  • Internal Bed Platform (Non Extended) Width 650mm each x Depth 1008mm each
  • Internal Bed Platform (Extended) Width 650mm x Depth 1970mm
  • Single Bed Cartridge Weight 36kg each
  • Single Bed Mattress Weight (2 pieces) 7.5kg
  • Tray/ Bed Spacer Kit (12 x posts @ 115mm) 5.4kg
  • Maximum Weight Load Per Single Bed 200kg (evenly distributed)

Total Combined Weight 118.9kg

What you get:

  • 1 x Twin Sliding Base Tray (Foot Print – 1200mm wide x 1400mm deep)
  • 1 x Removable Extending Single Bed Cartridge (Driver Side)
  • 2 x 3 Core Mattresses With Cool Plus Covers
  • 1 x Tray/ Bed Spacer Kit (12 x posts @ 115mm)
  • *Vehicle Fixing kit is not supplied with the Pod and will need to be purchased separately

1 in stock (can be backordered)

SKU: TST-SB-D Category: Tag:

Description



NOTE ***We hold some stock on the shelves and usually we have more on the go, please contact for stock level confirmation.  You will also require a vehicle fixing kit to secure the tray to the vehicle, this can be a simple set of angle brackets so you can screw directly to the floor or one of our vehicle specific fixing kits.  If you don’t see what your looking for or would like something made custom then please contact us for advise on what we can offer.***

One Pod Multiple Configurations

The Modular (Mod Pod) is our most flexible Pod so far.

Supplied in 2 parts, 1 x twin sliding base tray and 1 x extendable single bed cartridge (Driver Side) plus height adjustable spacers, you configure depending on your adventure.

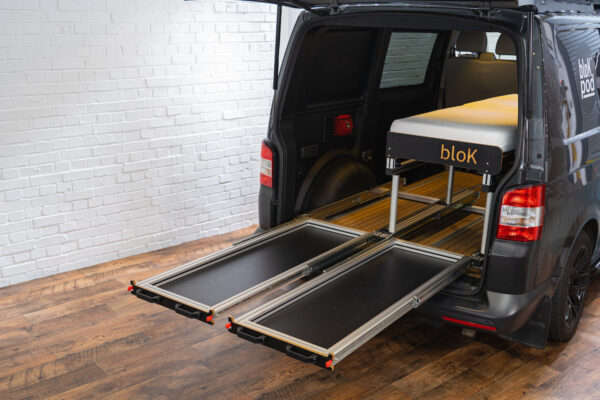

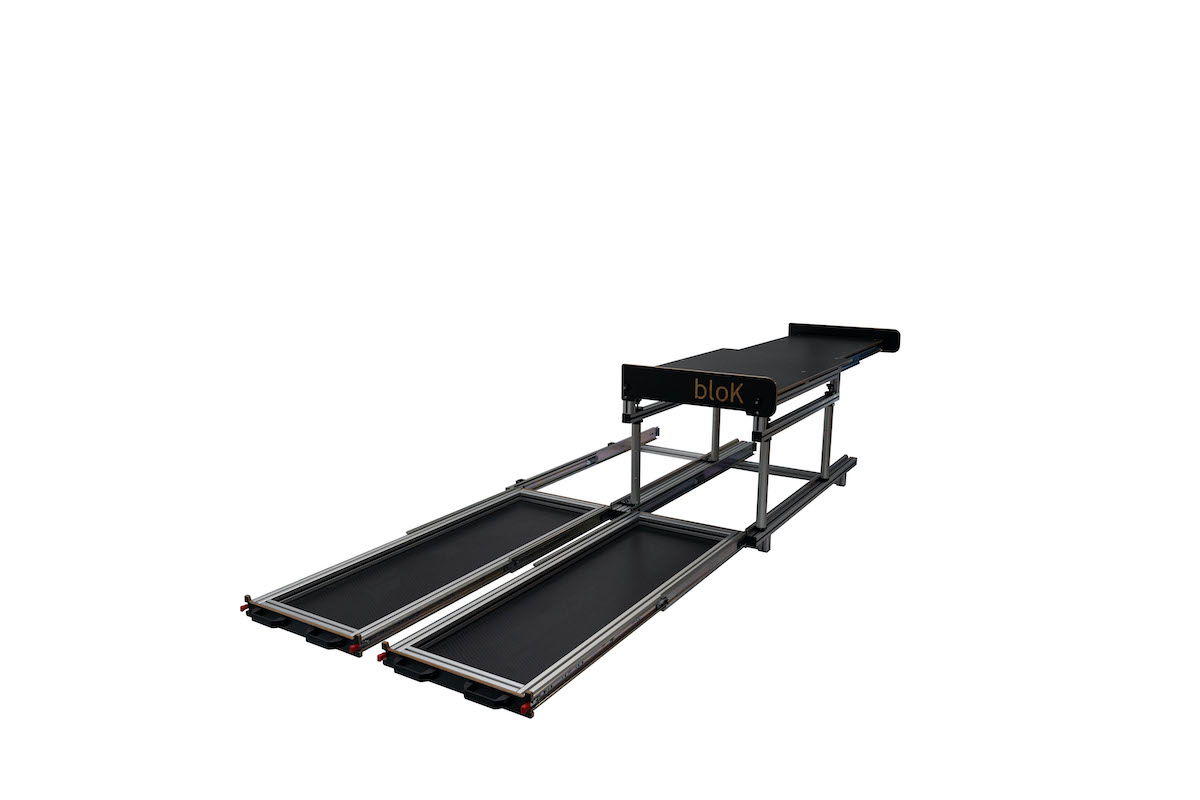

Sliding Base Tray

The sliding base tray is built using high quality aluminium profiles, heavy duty lockable drawer runners and a really tough resin coated birch ply base board. The twin trays can be extended by depressing the two red lockable triggers to release and pulling out until they lock, closing is the same but in reverse giving you the security of the trays staying where you need them, they can even take loads of up to 200kg evenly distributed per tray.

The base tray frame has eight of our quick release bed to base locking modules designed and manufactured in house, which then have spacer posts attached with screw threads, the beds then locate onto the posts via the Male/Female tapered joints, then tightened with 4 x finger knobs. Each of the finger knobs are sprung loaded so disconnecting is even easier, when loosened the knob releases from the thread but is retained within the frame so you don’t lose them.

We supply 12 x spacers at 115mm long, you can attach the bed directly to the base tray without any spacers or add for more height. If using in a vehicle with seats ie VW Kombi you will need to use all supplied spacers to gain clearance above the seats when folded and bed extended.

Supplied spacer height options:

  • 0 spacer 115mm height between tray & bed
  • 1 spacer high 230mm height between tray & bed
  • 2 spacer high 345mm height between tray & bed
  • 3 spacer high 460mm height between tray & bed

If you need more space below then additional spacers can be purchased and added to what you have.

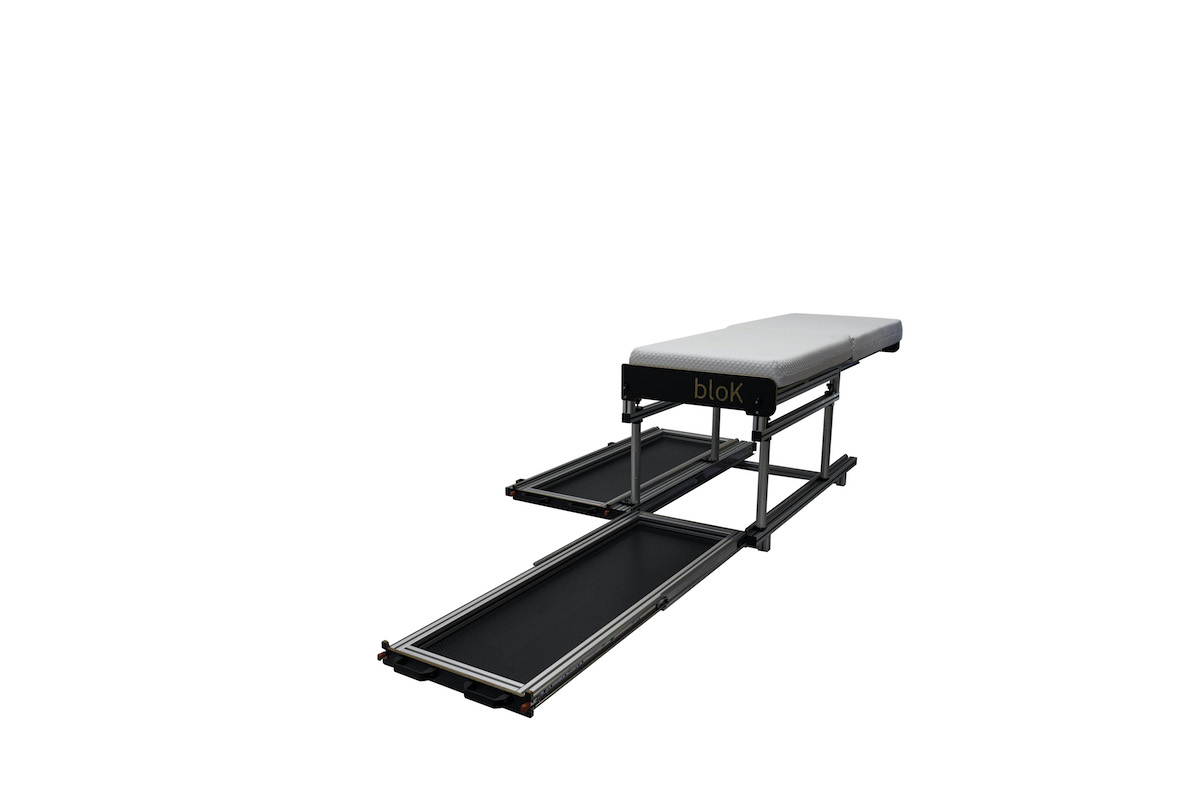

Sliding Bed

Each bed cartridge has a slide out extending platform that locks both in the extended and in the stored position. Using the same lockable drawer runners as the sliding base tray with the same impressive weight loading of 200kg.

We have designed the perfect 3 core mattress too, Firm Foam Base/ Medium Foam Centre / Memory Foam Top all wrapped up in a cool plus zipped cover to stop your body overheating. Supplied in two pieces for easy handling, when slid into position the mattress is held in place at both ends of the bed.

Fixing the Pod

You will need to fix the base tray to your vehicle which can be done using one of our fixing kits, the base tray can then be used with or without the bed attached.

Add Ons

Need something to drop into your sliding base trays, why not checkout our selection of accessories, Euro boxes or our drop in kitchen cubes.

How long will it take to get a Pod ?

We are very approachable so don’t be afraid to ask questions, we’re here to help.

We manufacture everything in house and usually keep stock of everything, if stock levels are zero then were probably in mid flow making more so best to give us a call for stock levels.

Twin Sliding Tray Sizes/ Weights:

  • External Frame Width 1205mm
  • External Frame Depth (including handles) 1448mm
  • External Frame Depth (excluding handles) 1408mm
  • Sliding tray Extension 1372mm
  • Internal Base Board Width (x2) 400mm x Depth 1300mm
  • Internal Tray Width (x2) 480mm
  • Internal Tray Depth (x2) 1380mm
  • Base Tray Weight 70kg
  • Maximum Weight Load 200kg Per Tray (evenly distributed)

Bed Cartridge Sizes/ Weights :

  • External Frame Width 600mm
  • External Frame Depth (including handles) 1070mm
  • External Frame Depth (excluding handles) 1030mm
  • Internal Bed Platform (Non Extended) Width 650mm each x Depth 1008mm each
  • Internal Bed Platform (Extended) Width 650mm x Depth 1970mm
  • Single Bed Cartridge Weight 36kg each
  • Single Bed Mattress Weight (2 pieces) 7.5kg
  • Tray/ Bed Spacer Kit (12 x posts @ 115mm) 5.4kg
  • Maximum Weight Load Per Single Bed 200kg (evenly distributed)

Total Combined Weight 118.9kg

What you get:

  • 1 x Twin Sliding Base Tray (Foot Print – 1200mm wide x 1400mm deep)
  • 1 x Removable Extending Single Bed Cartridge (Driver Side)
  • 2 x 3 Core Mattresses With Cool Plus Covers
  • 1 x Tray/ Bed Spacer Kit (12 x posts @ 115mm)
  • *Vehicle Fixing kit is not supplied with the Pod and will need to be purchased separately





Additional information

Weight 118.9 kg
Dimensions 121 × 145 × 89 cm
