*Designed to work with Ford Transit Custom Rear Cargo Hoop Mounting Holes.
Its a simple idea….. The vehicle has factory mounting points so why not use them to mount your multiple steads !!
We supply a piece of 80mm wide x 16mm high x 1680mm long extrusion that has twin t-nut slots, 2 x end caps and 2 x angle brackets with fixings.
Fitting: place 1 x angle brackets supplied with fixings at each end of the rail, all you have to do is unscrew the bolts that retain the cargo hoops, line the angle brackets up and place the screws through the brackets and back into the vehicle fixing holes and tighten, that’s it ready to add fork mounts.
Fitting 1 – 2 bikes Once fitted to your vehicle the t-nuts (supplied with the Extrusion fitting Fork Mounts) just slip in from above so you don’t need to worry about bashing the end caps off. Your Fork Mount/ Mounts can then be dropped on, finger knobs located in the t-nuts and positioned straight or straddle both slots to angle the bars for closer nesting, then tighten.
Fitting 3 – 4 bikes Your going to need one of our off-set plates added to each of you fork mounts (these can also be added for 1-2 bikes 😉 These do exactly what it says on the tin, it allows your bikes to be off-set so you can nest them nice and close, There is no right or wrong way to fit them because it all depends on what size your ride is !
*Don’t worry if you have already purchased one of our surface mount Fork Mounts we’ve got you covered, just buy the separate fixing kit when adding the rail to your basket 😉

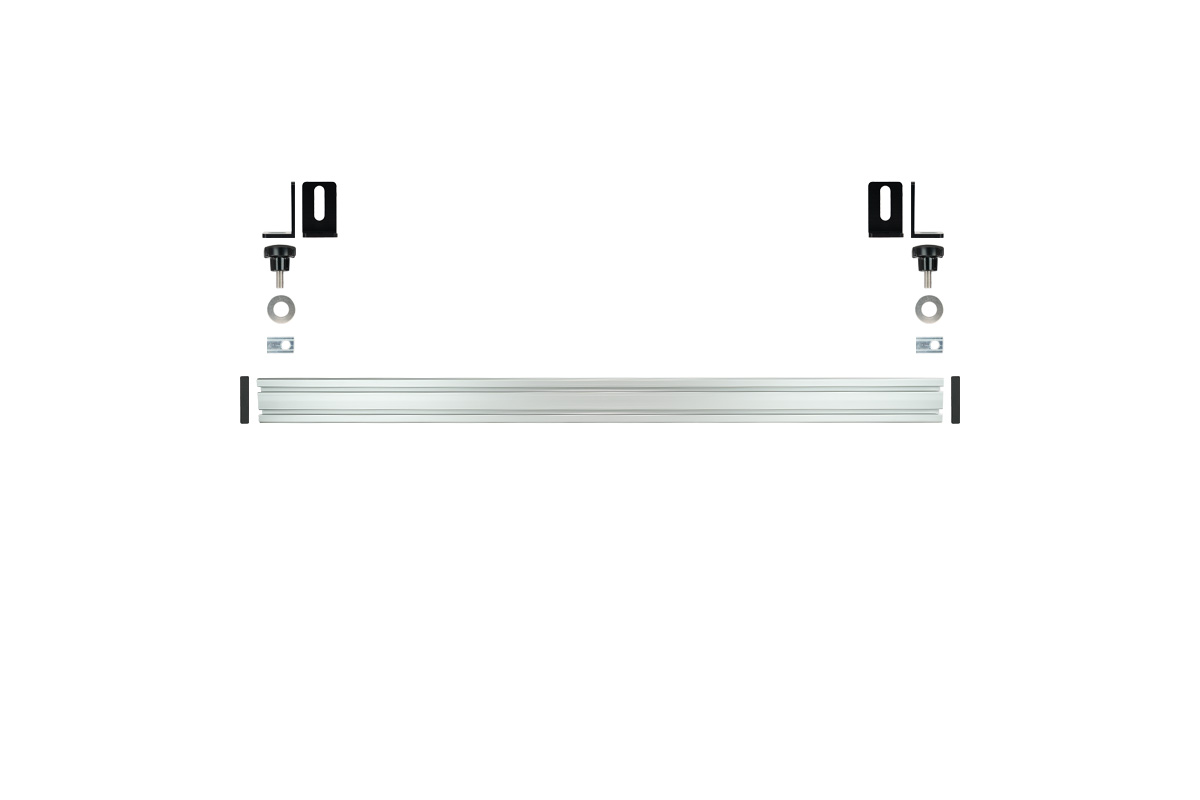

What you get:
- 1 x 80mm wide x 16mm High x 1680mm Long Twin T-Slot Extrusion Rail
- 2 x End Caps
- 2 x Angle Brackets
- 2 x M8 Sliding T Nuts
- 2 x M8 Washers
- 2 x M8 Finger Screws
